[Orion]LED strip not working with port 5

#1

I would like to use port 5 to light up the LED strip as other ports are used. But I found that the LED did not work properly with port 5. Can someone tell me what happens and how can I deal with the problem?
Thank you.

#2

What do you mean that it is not working properly?

cc: @tec_support

#3

My program want to turn on the LED strip on port 5 when the PIR motion sensor on port 6 recieves signal .
But sometimes there is only one Led turns green and sometimes nothing is done

#4

I did some searching and found this

Is it the problem that I face?
I tried the solution suggested in the comments but it didn’t work and the problem still exist

#5

Hi Micc,

Do you use the mBlock integrated Arduino software 1.6.5?

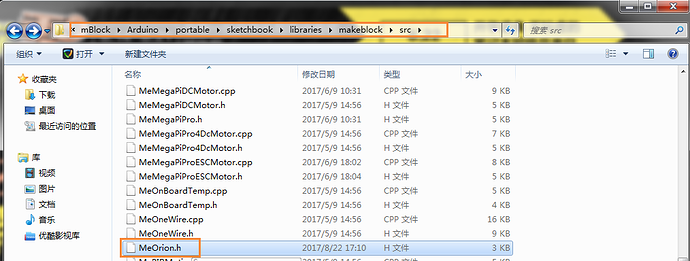

If yes, you may try modify the .h file under this path too:

Pasted image1014x384 92.4 KB
