mBot v1.1 (mCore board) DC plug size?

#1

Hi,
What is the plug size of the mCore board?

I cannot find this info in the data sheet.

Thanks,

#2

I think it’s a 2.1mm plug. @tech_support, can you confirm?

#3

OD / ID is probably needed to identify it.

I cannot find this basic info anywhere on the makeblock web site…

#4

Hi chuck and bgolab,

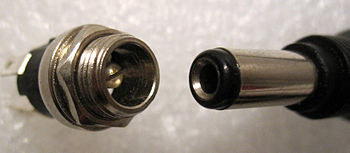

The plug of mBot should be DC3.5 * 1.1. While other boards are DC5.5 * 2.1.

#5
