How to Calculate X_STEPS_PER_INCH, X_STEPS_PER_MM and X_MOTOR_STEPS

#1

Hi All,

I have checked out the latest plotter 2.0 code: GcodeParser.ino and would like to know how these numbers get calculated:

float X_STEPS_PER_INCH = 48;
float X_STEPS_PER_MM = 40;
int X_MOTOR_STEPS = 100;

Many thanks

Kuang

#2

Hi Franklee,

We calculated it base on 1/8 Microstep Resolution.

#3

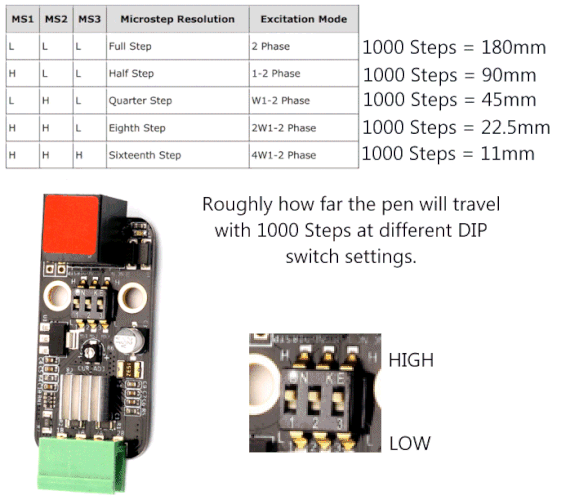

I measured these…

Stepper-settings.gif693x612 89.7 KB

…which may help.

#4

Thank you Giovanniguerra

That helps . Just did the 1st drawing from the plotter snd came out pretty good

Frank kuang

#5

Glad it helped. My measurements were not super accurate, but better than nothing…!
